KCFP, Closed-Loop Combustion Control
Researchers: Rolf Johansson and Gabriel Turesson in cooperation with Lianhao Yin and Prof. Per Tunestål, Div. Combustion Engines, Lund University.
Competence Center Combustion Processes (KCFP) at Lund University focuses on research of combustion processes between HCCI (Homogeneous Charge Compression Ignition) and classical Otto and Diesel engines.
Project aims:
- Reducing emissions, improving efficiency and repeatability of HCCI and partially pre-mixed combustion (PPC) using closed-loop control;
- Control-oriented modeling and simulation of combustion processes;
- Model-based control and optimization evaluated on test beds.
During the project phase from 2014 to 2017, research has been focused on implementing PPC in a multi-cylinder heavy-duty engine with the objective of advancing the concept from manual operation in steady state towards autonomous and transient operation. Controllers have been designed to regulate ignition delay and pressure-rise rate and to improve low-load operation. The ignition delay determines the degree of premixed combustion and is essential for successful PPC operation. Premixed combustion can give rise to violent combustion and high pressure-rise rate rates. This can be avoided with the use of small pilot fuel injections. Pilot-injection adjustment with feedback control was used to keep the pressure-rise rate below specified levels. It has also been found that pilot injections are necessary for improvement of charge ignitability at low engine load where PPC traditionally have had difficulties to operate with sufficient reliability. The designed controllers have been evaluated experimentally in the engine laboratory at Lund University.
During 2017, model predictive control has been used to efficiently fulfill constraints on cylinder pressure, NOx emissions and exhaust temperature with multiple injections. It has been shown that multiple injections can be used to increase efficiency with 2 to 4 % if restrictive constraints are imposed. The principle of this control method is to utilize a linearized cylinder pressure model and a novel heat-release detection method, in order to predict how cylinder pressure and NOx emissions vary with fuel-injection timings, see Fig.1.

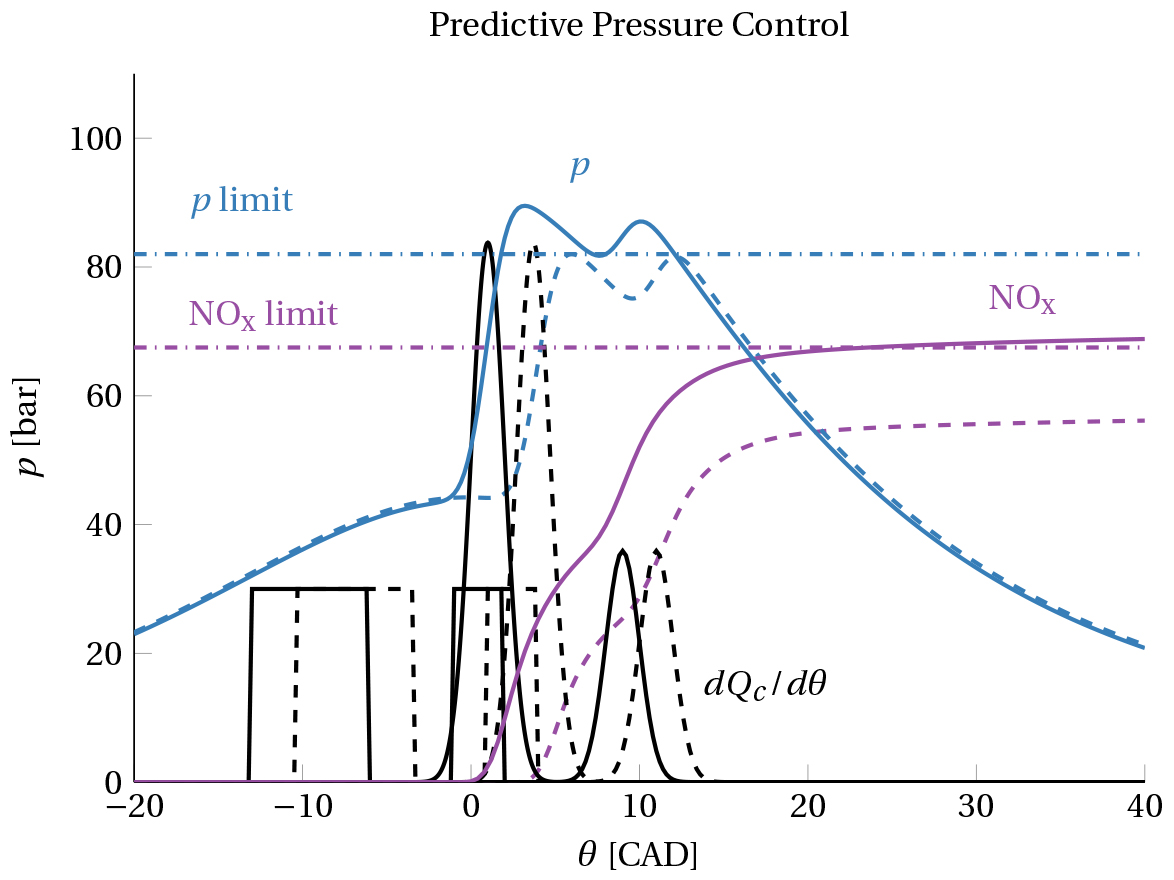

Fig. 1 Model predictive control has been utilized to efficiently fulfill constraints on cylinder pressure and NOx emissions with the use of multiple injections. This figure illustrates how the controller predicts a deviation in pressure, NOx formation and heat release rate (dashed) from the previous cycle data (solid).
